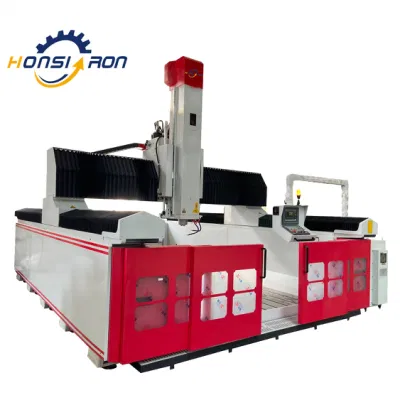

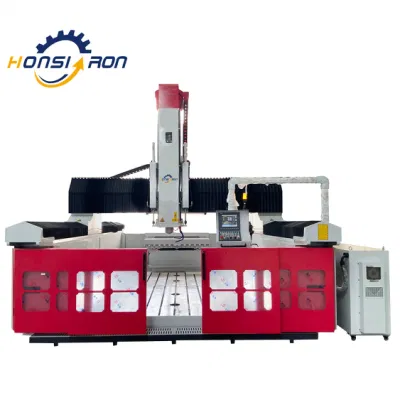

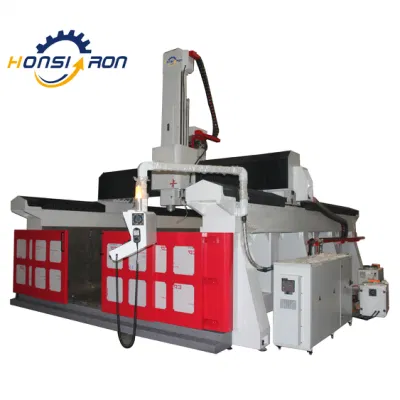

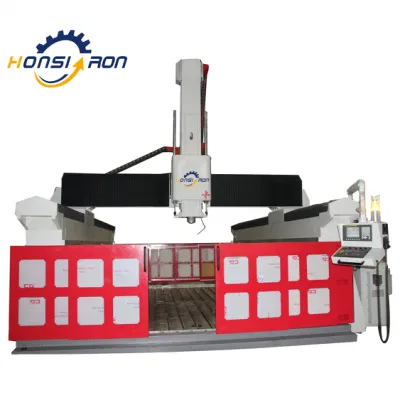

HSR 3S series(HSR-3S1525T/HSR-3S2040T/HSR-3S3040T......) is professional big aluminum mold machining center with heavy duty-body and BT40 mechanical spindle
Stroke range | X axis | 2000mm | |
Y axis | 4000mm | ||
Z axis | 1200mm | ||
X,Y,Z structure | Heavy duty seamless steel structure | ||
X, Y,Z ball screw transmission | |||
Transmission | X,Y axis | High precision and high speed ball screw transmission | |
Z axis | Taiwan original ball screw transmission | ||
Spindle | 7.5kw mechnical BT40 water cooling spindle directly connect with CTB servo motor | ||
0-18000rpm/min | |||
Operating system | Taiwan SYNTEC 6MB-E control system with hand wheel | ||
Motor type | JAPAN Yaskawa servo motor | ||
Reducer | Japan SHIMPO planetary reducer | ||
Working voltage | AC380V 3phase 50hz | ||
Applicable Software | UG/Powermmill | ||
Table | casting iron working table | ||
Balance method | Z-axis nitrogen balance device |
Adopt Beijing CTB 7.5kw spindle servo motor to driver the spindle directly, with lower process cost. would mill the steel nails directly.
Liquid type cylinder to hold the tool holder when change tool.
INDUSTRY:
###Die industry: A sculpture of aluminum,foam,plastic sheeting, PVC, wooden planks andother soft-metallic mold.
###Pattern making industry:Mold industry: Any type car mold, boat mold, foundry mold,aviation mold,dia mold,etc,especially wood and aluminum pattern making which with nail or screws inside.
###Plate processing industry: insulation, plastic and chemical, the PCB, move the car body bowing,track,stars anti-special board,epoxy,resin.ABS.PP,PE.and other carbon mixture;
Features:
***Lathe body is also welded with seamless thick steel structure. In order to avoid structure distortion,machine body is processed by Vibrating Stress Relief(VSR);
***Z axis use dual pneumatic balance cylinder design,which effectively reduces the motor's loading power and extend machines service life;
***In order to keep machine surface smooth,Machining Center(3.3m*8m,made in Taiwan) is used to carve/mill machine body and drill holes;
***Machine metal spare parts are made by HAAS milling center
***All axes use dust-proof and protective door (front and back) design to make the maintain more easier:
***Accuracy of machine:we use the Leader to measures the straightness,verticality.
contouring accuracy and any deviations. The revolutionary precision measuring technology from USA;
***Has the function of re-carving after break point and power failure. Has the function of forecasting process time;
***All main spare parts use the top brand,such as Omron switch,Auto lubrication. USA heat exchange for control cabinet. CW series auto spindle cooling system..
All design to ensure the whole machine with the best performance:
