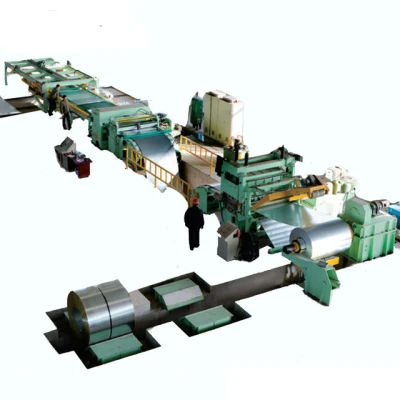

Raintech Automatic Steel Coil Side Trimming Cut to Length Line Machine

Welcome to our factory! We specialize in the production of the Raintech Automatic Steel Coil Side Trimming Cut to Length Line Machine for all your industrial needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
Cut to Length Line
Warranty
One Year
Function
Steel Coil Cutting
Transport Package
Standard Export Package
Specification
Customized
Trademark
Raintech
Origin
China Shandong
HS Code
841900091
Production Capacity
20sets/Year

Product Description

Product Description

Cut to length line is used to unwind, level, cut the metal coil into the required length and stack it. It is suitable for cut-to-length cross-cutting operations for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after surface coating.This production line has provided multiple lines for the welded pipe industry, sheet distribution industry, automobile industry, environmental protection industry, and metal sheet industry, with mature and reliable technology.
Raintech Automatic Steel Coil Side Trimming Cut to Length Line Machine

MAIN COMPONENTS

COIL SKID V- type, main body welded by steel plate
COIL CAR Pit type, main body welded by steel plate
PAPER WINDER Pneumatic expanded  operated mandrel type.The paper winder will rewind the interleaving paper, as the strip is paid off.
UNCOILER WITH SNUBBER ROLL Cantilever with four segments type
COIL OPENER   Telescopic and swing type
HI LEVELER 4-Hi, 15 rolls type
LOOP TABLE Swing type
SIDE GUIDE Vertical roll guide type
FEEDER ROLL WITH MEASURING ROLL AND PVC COATER 2+3 rolls type
SHEAR Mechanical type
BELT CONVEYOR   Belt type
PILER ,LIFTER ,CONVEYOR CAR
HYDRAULIC UNIT  1 set
PNEUMATIC UNIT Pneumatic source:by buyer
ELECTRICAL EQUIPMENT Adjustment, manually, automatic operation mode.
One key start-up, multi-machine synchronization.
Speed adjustment.
Line stop to cuts specified.
Fault information display and diagnosis.
Maintenance help.
Emergency stop, fast stop
Start alarm caution.
Raintech Automatic Steel Coil Side Trimming Cut to Length Line Machine
Raintech Automatic Steel Coil Side Trimming Cut to Length Line Machine

Raintech Automatic Steel Coil Side Trimming Cut to Length Line Machine
Raintech Automatic Steel Coil Side Trimming Cut to Length Line Machine

SPECIFICATION
Model
Parameter
Material
Thicknes
(mm)
Max.Coil Width
(mm)
Cutting
Accuracy
(mm)
Max. Speed
(m/min.)
Max.Cutting
Frequency
(spm)
Uncoiling
Weight
(Tons)
SCL-6*1600 1-6 800-1600 ±0.5 40

40 25
SCL-6*1850 1-6 900-1850 ±0.5 40 40 30
SCL-6*2000 1-6 900-2000 ±0.5 40 40 30
SCL-8*1600 2-8 900-1600 ±0.5 35 30 25
SCL-8*1850 2-8 900-1850 ±0.5 35 30 30
SCL-8*2000 2-8 900-2000 ±0.5 35 30 30
SCL-12*2000 3-12 900-2000 ±1.5 30 15 35
SCL-16*2000 4-16 900-2000 ±2.0 20 10 35
SCL-20*2000 8-20 900-2000 ±2.0 20 10 35
After Sales Service

1. OEM Design&Production
    Our active engineer and design team can make the special machine according to customer's special requirements.
2. Delivery in Time Assurance
    We assure the machines your ordered will  delivered at promised time
3. Free Installation&Training
    We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training; installation operation video provided
4. Your Payment Protection
    You can pay through Alibaba to protect  your advance payment
5. Online Factory Inspection Service
    The factory inspection before your order, will be provided online by video meeting app, like room, wechat,skype etc..
6. Long Life Maintenance of Machine
    We keep provide the maintenance for all machine life
7. International Third Party Inspection Supported
    You can appoint the international third party party, such as TUV, SGS,BV, do inspection before shipment

FAQ

1. Q: Are you a Manufacturer or a trading company?
     A:We are a professional manufacturer with more than 15 experience in manufacturing, assembling and selling in this field. We have our own factories as well as trading companies
2. Q: How long have your factory been in this field? And how many staff do you have?
    A: We have been in this field mode than 12 years since the year of 2008, total staff more than 100.
3. Q:Where are you and how can I visit you?
    A: Our factory located in Jinan City, Shandong Province China, contact us before your visit in order that we can arrange the good reception.
4. Q: Can you provide a customized solutions?
     A: Yes, our engineers are pleased to listen your idea and customized design is available
5. Q: What about the warranty?
     A: We provide 12 months warranty since the machine arrival. free charge of spare parts and regularly maintenance service.
6. Q:How about the delivery time ?
     A: The delivery time is different on different products.We never receive any complain from our customers for the delivery time
7. Q: What about the package and shipment , worry about damage in shipping .
     A:The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
8. Q: What kind of payment does your company support?
     A: T/T, 100% L/C at sight, Cash, Western Union are generally accepted.
9. Q:Do u support on installation and training?
      A: Yes, we provide engineers to your site for installation and training, if conditions not allowed, we provide team work by video conference for installation gaudiness on line.

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
