Soil Testing Machine Spt Standard Penetration Test

Get accurate soil testing results with our SPT standard penetration test machine. As a factory, we ensure high-quality equipment for reliable data.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
IWIN-SPT
Drop Weight
63.5kg
Fall Height
760mm
Transport Package
Wooden Box
Specification
1 CBM
Trademark
IWIN
Origin
Hebei China
Production Capacity
5000sets/Month

Packaging & Delivery

Package Size
160.00cm * 50.00cm * 50.00cm
Package Gross Weight
300.000kg

Product Description


Product Description

Soil Testing Spt Test Standard Penetration Test
Soil Testing Machine Spt Standard Penetration Test

Features:

• The Standard Penetration Test, or SPT, is the most widely used in-situ test throughout the world, as

an indicator of the density and compressibility of granular soils. It is also commonly used to check the
consistency of stiff or stony cohesive soils and weak rocks. Estimation of the liquefaction potential of saturated

granular soils for earthquake design is often based on these tests. Available design methods for both shallow
and deep foundations rely heavily on SPT results.

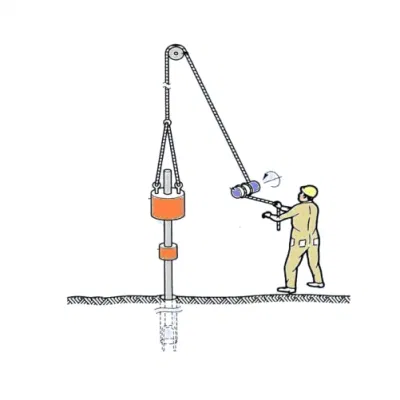

• The test consists of driving a standard 50-mm outside diameter thickwalled sampler into soil at the bottom
of a borehole, using repeated blows of a 63.5 kg hammer falling through 760 mm. The SPT N value is the
number of blows required to achieve a penetration of 300 mm, after an initial seating drive of 150 mm.





Soil Testing Machine Spt Standard Penetration Test

Soil Testing Machine Spt Standard Penetration Test


Specification

Hammer mass

Falling distance

Dia.probe head

light

10kg

50cm

Φ40mm

medium

28kg

80cm

Φ74mm

heavy

63.5kg

76cm

Φ74mm

extra-weigh

120kg

100cm

Φ74mm



Comprise:

1. SAMPLER ASSEMBLY :

Split-Barrel Sampler, Hardened machined steel,

Plastic Catcher

Adapter SPT-AS6 SPT Cutting Shoe Sampling Rod, 1.5 meter length



2. DRIVE WEIGHT ASSEMBLY :

Hammer, steel, 63.5 kg weight, Guide Rod, Steel, 76.2 cm drop height

Anvil, Machined steel



3. Accessories and spare parts:

Tripod stand, steel pipe ,  Vertical Guide, Machined steel

Rope, 3/4'' x 15 metre ,  Pipe Wrench, set of two 24'' length

Pulley, 20 cm diameter ,  Motor hoisting machine
