Basic Info.
Model NO.
MS-50
Applicable Thickness
Middle Thickness Material
Function
Embossing, Package Edge, Hot Stamping, Welding, Cutting, Carving, Stitching, Trimming
Voltage Supply
1p/AC 220V/50Hz
Installed Power
1500W
Ultrasonic Frequency
20kHz
Working Speed
16m/Min, Adjustable Depend on Fabric Thickness
Net Weight
110kgs
Gross Weight
140kgs
Packing Size
1250*605*1300 (mm)
Workable Materials
Polyester, Nylon and Non-Woven Fabrics.
Usages
Used for Cutting Lace, Sewing, Welding for Polyest
Transport Package
Plywood Case
Specification
MS-50
Trademark
MosunSonic
Origin
Made in China
HS Code
84479090
Production Capacity
16m/Min with 12 Hours/Day
Product Description
Ultrasonic Lace Sewing Machine for Side Scraping and Trimming
Model: MS-50
1. Characteristics
2. Functions
1) The operations of side scraping and trimming
The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.
2) Make holes
The holes with different patterns can be cut and the treatment of side melting can be carried out too.
3) Transfer printing
Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.
4) Cut Material
This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.
5) Forming
Press the pattern wheel.
At one time the process of cutting, hole breaking and patter printing can be carried out.
3. Suitable material:
Composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth, nylon cloth, knitting cloth, non spin cloth, gush glue cotton, PE paper, PE + aluminium, PE + cloth, and so on.
4. Application:
Lace clothing, skirt rim, sportswear, pajamas, gown, hair decorations, packaging satin, colored ribbon, tent, raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover, curtain, handkerchief, coloured flag, disposable operating coat, non spin respirator, handicraft, decorations products.

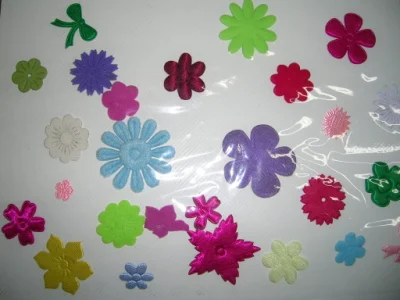

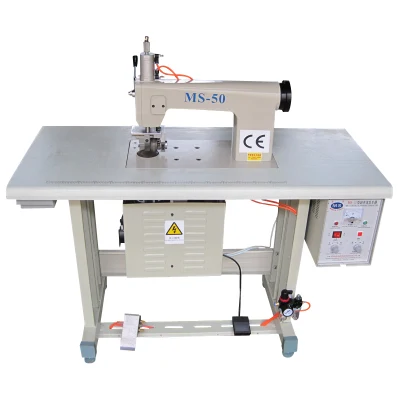

5. Machine picture and samples:
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](//img6.grofrom.com/www.machinehangkeco.com/226f3j00mthEORplOuoH/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](//img6.grofrom.com/www.machinehangkeco.com/226f3j00OimbuoQPhIkt/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](//img6.grofrom.com/www.machinehangkeco.com/226f3j00nVdbgSTtHIcE/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](//img6.grofrom.com/www.machinehangkeco.com/226f3j00FVmcgAQInHkt/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
Model: MS-50
1. Characteristics
Good Name: | Ultrasonic lace sewing machine |
Model: | MS-50 |
Voltage Supply: | 1P/AC 220V/50Hz , AC 110V available. |
Installed Power: | 1500W (actual consumption power: 1500W*60%=900W) |
Ultrasonic Frequency: | 20KHz |
Working Speed: | 0-16m/min, adjustable as per fabric thickness. |
Max. Pattern Width: | Within 60mm |

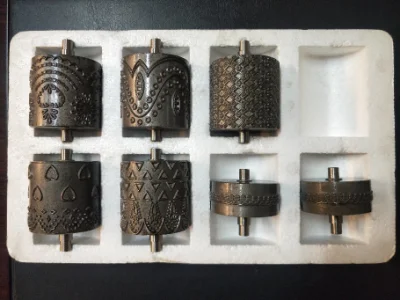

Pattern Roller Sizes: | 23MMxØ51MM; 50MMxØ51MM; 65MMxØ51MM |
Materials Suitable: | Polyester, nylon and non-woven fabrics. |
Usages: | Used for cutting lace, sewing, welding for polyester and non-woven fabrics. |
Packing Size: | L (125cm)x W(60cm)x H(130cm) |
Gross Weight: | 140KGS |
2. Functions
1) The operations of side scraping and trimming
The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.
2) Make holes
The holes with different patterns can be cut and the treatment of side melting can be carried out too.
3) Transfer printing
Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.
4) Cut Material
This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.
5) Forming
Press the pattern wheel.
At one time the process of cutting, hole breaking and patter printing can be carried out.
3. Suitable material:
Composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth, nylon cloth, knitting cloth, non spin cloth, gush glue cotton, PE paper, PE + aluminium, PE + cloth, and so on.
4. Application:
Lace clothing, skirt rim, sportswear, pajamas, gown, hair decorations, packaging satin, colored ribbon, tent, raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover, curtain, handkerchief, coloured flag, disposable operating coat, non spin respirator, handicraft, decorations products.
5. Machine picture and samples:
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](http://img6.grofrom.com/www.machinehangkeco.com/226f3j00mthEORplOuoH/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](http://img6.grofrom.com/www.machinehangkeco.com/226f3j00OimbuoQPhIkt/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](http://img6.grofrom.com/www.machinehangkeco.com/226f3j00nVdbgSTtHIcE/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](http://img6.grofrom.com/www.machinehangkeco.com/226f3j00FVmcgAQInHkt/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
![Ultrasonic Lace Sewing Machine for Side Scraping and Trimming](http://img6.grofrom.com/www.machinehangkeco.com/226f3j00mhwqrfTYJDct/Ultrasonic-Lace-Sewing-Machine-for-Side-Scraping-and-Trimming.webp)
