Basic Info.
Model NO.
XCLP3
Knife Type
Iron Die/Knife
Customized
Customized
Condition
New
Color
Blue and White
After-sales Service
Engineers Available to Service Machinery Overseas
Motor Power
2.2kw/3kw/5.5kw/7.5kw/11kw
Power Supply Voltage
3p/1p; 220V/380V;50Hz/60Hz
Transport Package
Wood Crate
Specification
30t/35t/40t/50t/60t/80t/100t/150t
Trademark
Haide
Origin
China
Production Capacity
5000 Pieces /Year
Product Description
Product Features:
• This machine is suitable for continuous blanking of multiple or single layer of sheet material, for example, it can be used in the industries of blister, foam, floor, felt, etc.
• Double oil cylinder, precise four-column automatic balancing two-link mechanism, cutting error of each cutting position within ±0.1mm.
• When the cutting head is pressed down, it will automatically slow down before contacting the cutting tool 10mm. Two-stage pressure is applied. When the upper working plate is pressed down to the cutting tool, it will turn to be flexible and cut off, thus reducing the size error between upper and lower layers when cutting multi-layer materials.
• Single and double-sided automatic feeding mechanism and automatic lubrication system, PLC computer touch screen program control, simple operation, less failure rate, uniform cutting force, can improve work efficiency.
• M icrocomputer control system can store multiple groups of memory according to the cutter mold form needed for work. When changing the cutter mold, it is unnecessary to set the cutter mold again [Option].
• Using imported hydraulic system and Taiwan, Japan electrical appliances matching, power saving, low noise, simple operation.
• C entral automatic lubrication system, without the worry of damage of parts caused by manual negligence, is equipped with external oil circuit system and equipped with water cooler [option], which can provide sufficient heat dissipation, effectively maintain blanking force, and extend the service life of the machine.
Product application:
sandpaper, medicine, plastic, foam, floor, felt, car interior, PP,PE,EVA,EPE,EPP,EPS, sponge, rubber, bubble film, double-sided glue, advertising paste, magnetic paste, insulation cotton, pearl cotton, computer accessories, paper, mat, Xuan paper, fan, seal, protective clothing, film, jigsaw puzzle, chocolate, filter material, sound-absorbing cotton, corrugated board, clean cloth, non-woven cloth, leather, seat cover, foot pad, umbrella, mouse pad, carton, cup, tablecloth, simulation flower, raincoat, hat, ear cover, mask, glove, insole, coaster Loofah cloth, blanket, cork, plaster, nuts, soundproof cotton,
Product data:
If the above table does not have the size of the cutting machine you need, we can remake it for you.
REMARK: MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER, FOR EXAMPLE, THE CUTTING FORCE, CUTTING AREA, FEEDING DEVICE, SPECIAL STROKE ETC
Product Application Case:
Product picture:
Product packaging picture:
Product Certificates and Qualifications:
WHY CHOOSE HAIDE MACHINERY?
1.More than 20 years experience in the field of die cutting machine .
2.Strictly Quality control
(Comparing with other company Hai De has our own quality control team, every product will be checked again and again before delivery according to standard.)
3.Reasonable price and quick delivery time
(We are the directly manufacturer of cutting machine and with full experience, the price is competitive and we have our big factory working house and many experience workers can ensure the delivery time)
4.OEM and ODM service.
(We have OEM for many oversea customers and we have our own ODM team can produce product on your demand accordingly )
5.Professional salesman and good service
(All of our foreign sale man have to pass the strictly professional production knowledge training before their start to communicate with customer, and we will reply your inquiring asap no later than 24 Hours)
FAQ
1. Q: Are you a factory or trading company?
A: Yes,we are a factory. welcomed to visit us
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng City,China. It takes about 1 hours from Shanghai by plane
3. Q: What is the lead time?
A: It depends on your order quantity
4. Q: Where is your Loading Port
A: Shanghai. port, China or otheres as you request
5. Q: What are your payment terms?
A: T/T 30% deposit and balance paid before shippment.
• This machine is suitable for continuous blanking of multiple or single layer of sheet material, for example, it can be used in the industries of blister, foam, floor, felt, etc.
• Double oil cylinder, precise four-column automatic balancing two-link mechanism, cutting error of each cutting position within ±0.1mm.
• When the cutting head is pressed down, it will automatically slow down before contacting the cutting tool 10mm. Two-stage pressure is applied. When the upper working plate is pressed down to the cutting tool, it will turn to be flexible and cut off, thus reducing the size error between upper and lower layers when cutting multi-layer materials.
• Single and double-sided automatic feeding mechanism and automatic lubrication system, PLC computer touch screen program control, simple operation, less failure rate, uniform cutting force, can improve work efficiency.
• M icrocomputer control system can store multiple groups of memory according to the cutter mold form needed for work. When changing the cutter mold, it is unnecessary to set the cutter mold again [Option].
• Using imported hydraulic system and Taiwan, Japan electrical appliances matching, power saving, low noise, simple operation.
• C entral automatic lubrication system, without the worry of damage of parts caused by manual negligence, is equipped with external oil circuit system and equipped with water cooler [option], which can provide sufficient heat dissipation, effectively maintain blanking force, and extend the service life of the machine.
Product application:
sandpaper, medicine, plastic, foam, floor, felt, car interior, PP,PE,EVA,EPE,EPP,EPS, sponge, rubber, bubble film, double-sided glue, advertising paste, magnetic paste, insulation cotton, pearl cotton, computer accessories, paper, mat, Xuan paper, fan, seal, protective clothing, film, jigsaw puzzle, chocolate, filter material, sound-absorbing cotton, corrugated board, clean cloth, non-woven cloth, leather, seat cover, foot pad, umbrella, mouse pad, carton, cup, tablecloth, simulation flower, raincoat, hat, ear cover, mask, glove, insole, coaster Loofah cloth, blanket, cork, plaster, nuts, soundproof cotton,
Product data:
| Model No. | Cutting force | Stroke Range | Area of Work Table | Main Motor Power | Driving power | Dimension |
| XCLP3-300 | 30T | 50-190mm | 1600*500mm | 2.2KW | 1.5kw | 2250*1000*1400 |
| XCLP3-350 | 35T | 50-190mm | 1600*610mm | 2.2KW | 1.5kw | 2250*1000*1400 |
| XCLP3-400 | 40T | 50-190mm | 1600*700mm | 3KW | 1.5kw | 2230*1100*1400 |
| XCLP3-500 | 50T | 50-190mm | 1600*800mm | 4KW | 1.5kw | 2250*1200*1450 |
| XCLP3-600 | 60T | 50-159mm | 1600*900mm | 5.5KW | 1.5kw | 2350*1300*1500 |
| XCLP3-800 | 80T | 50-190mm | 1800*1500mm | 7.5KW | 2kw | 2600*1900*1500 |
| XCLP3-1000 | 100T | 50-190mm | 2000*1400mm | 7.5KW | 2kw | 2800*1800*1500 |
| XCLP3-1500 | 150T | 50-190mm | 2100*1100mm | 11KW | 2kw | 2950*1500*1550 |
| XCLP3-2000 | 200T | 50-190mm | 2600*1800mm | 18.5KW | 2.5kw | 2950*2600*1690 |
| XCLP3-2800 | 280T | 50-190mm | 3200*2400mm | 18.5KW | 3kw | 4050*3250*1710 |
| XCLP3-3000 | 300T | 50-190mm | 2800*1600mm | 18.5KW | 2.5kw | 3550*2280*1710 |
| XCLP3-3500 | 350T | 50-190mm | 3900*2700mm | 22KW | 3kw | 4680*3560*1750 |
| XCLP3-4000 | 400T | 50-190mm | 4600*3500mm | 22KW | 3kw | 5600*4380*1750 |
REMARK: MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER, FOR EXAMPLE, THE CUTTING FORCE, CUTTING AREA, FEEDING DEVICE, SPECIAL STROKE ETC

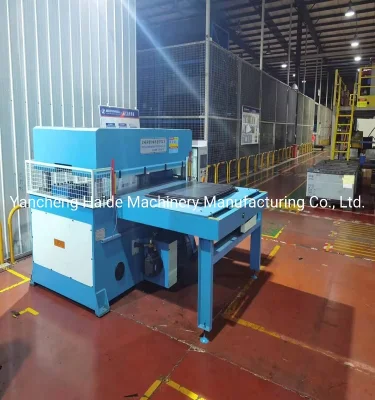

Product Application Case:

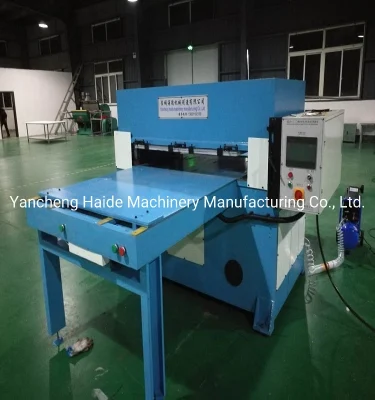

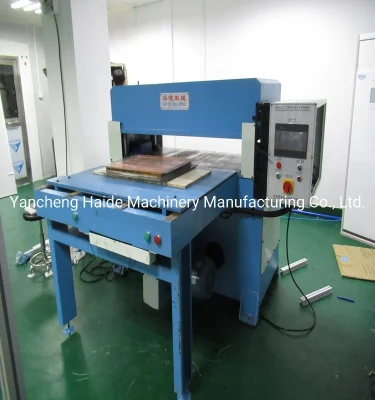

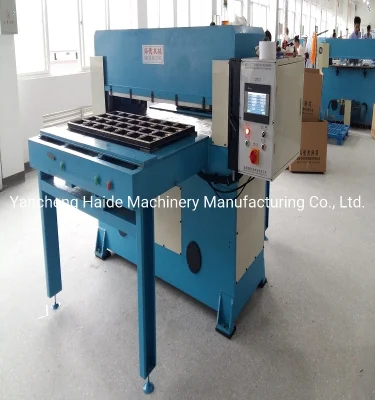

Product picture:
