Product Description
CNC Cutting Machine Series
Loading, Deliver, Cutting & Break off the table - 4 in 1
Loading, Delivery & Cutting - 3 in 1
Loading & Cutting - 2 in 1
Loading, Deliver, Cutting & Break off the table - 4 in 1
Loading, Delivery & Cutting - 3 in 1
Loading & Cutting - 2 in 1
The automatic glass cutting all-in-one machine absorbs a single piece of glass through a suction cup, carries large and thick pieces of glass which are placed approximately vertically on a glass shelf, and then converts the glass to a horizontal state by mechanical transmission, and then uses a cutting system to cut it. It solves the current situation of difficult, unsafe, large cutting errors and low production efficiency which are caused by the large and thick pieces of glasses.
The machine is simple and safe to operate, features fast have high processing accuracy, and is labor-saving. The control system of the loading mechanism is controlled by a microcomputer (PLC programmable controller), and the cutting system adopts a CNC numerical control operating system to make the entire control system reliable, simple, and high automation.
The machine can walk in the workshop and rotate 360 degrees. The machine automatically locates the angle and position of the glass and integrates linear cutting and heterosexual cutting. From the film loading to the cutting, it is fully controlled. The equipment adopts the latest generation control system, which truly realizes the linkage between the equipment and the computer, with high accuracy and fast speed. The cutting machine has a series of latest functions such as automatic laser positioning and graphic scanning. The glass is automatically typeset, and the profile is scanned automatically, thereby eliminating manual CAD measurement and drawing. The machine uses high-performance motors and gear racks to ensure the stability of the machine itself. The cutter wheel is imported from Germany with a high hardness cutter wheel. The cutter head is equipped with a protection device to effectively prevent the cutter from colliding. The machine can be equipped with an automatic labeling function and cymbal table to achieve assembly line operation.
The machine is simple and safe to operate, features fast have high processing accuracy, and is labor-saving. The control system of the loading mechanism is controlled by a microcomputer (PLC programmable controller), and the cutting system adopts a CNC numerical control operating system to make the entire control system reliable, simple, and high automation.
The machine can walk in the workshop and rotate 360 degrees. The machine automatically locates the angle and position of the glass and integrates linear cutting and heterosexual cutting. From the film loading to the cutting, it is fully controlled. The equipment adopts the latest generation control system, which truly realizes the linkage between the equipment and the computer, with high accuracy and fast speed. The cutting machine has a series of latest functions such as automatic laser positioning and graphic scanning. The glass is automatically typeset, and the profile is scanned automatically, thereby eliminating manual CAD measurement and drawing. The machine uses high-performance motors and gear racks to ensure the stability of the machine itself. The cutter wheel is imported from Germany with a high hardness cutter wheel. The cutter head is equipped with a protection device to effectively prevent the cutter from colliding. The machine can be equipped with an automatic labeling function and cymbal table to achieve assembly line operation.
How to know one glass cutting machine is good or not?
Everyone would like to get a good glass cutting machine. But how to know it is good or not?
Now, we are going to share with you some information and hope it is helpful to you.
Firstly, let's see the countertops
All the countertops are made of PVC resin plate, with high hardness, no deformation, waterproof, and oil-proof. Don't choose the foam board, because the disadvantage of it, is easy to deform. Also, the shortcomings of the density board are fear of water & oil, high humidity, and easy deformation. The entire surface of our PVC resin board is processed by a processing center, and the surface is very smooth. The unprocessed countertop has poor flatness. When cutting 3mm thick glass, the glass is easy to crack. The thinnest glass thickness that our machine can cut is 2mm.
Now, let's move on to the whole frame structure
The whole frame is annealed after welding. The purpose of annealing treatment is to release the internal stress of steel welding and prevent deformation during later use, thereby affecting the cutting accuracy. Without annealing heat treatment, the cutting accuracy will be greatly reduced.
The supporting surface of the whole machine for installing the linear guide rail is processed, and the beam is also annealed steel beam. If you use aluminum beams, it will lead to poor cutting accuracy and poor stability. The cutting accuracy of our cutting machine can be guaranteed to be ≤0.2mm.
When the machine sucks glass, it works with a telescopic arm, and the machine does not move back and forth. We designed the linear guides on both sides to be used flat, and the linear guides used in the flat can bear even force, long life, and good stability. If it is used upright, only the upper side is stressed, and the machine makes a lot of noise when cutting glass.
Lastly, let's see the configurations of the main parts
- Japan Panasonic Sensor
- German Bohle cutter head
- American Honeywell Electrical components - Relay
- Taiwan AirTAC air cylinder
- Taiwan Meanwell Power Supply
- Japan Mitsubishi PLC
- Two motorheads to drive the cutting head
- The whole machine is free to move, and 360-degree rotate
Parameters of the cutting machine
| Technical Parameters | TYJT-2420 | TYJT3628 |
| Dimensions | 3630*4700*1400mm | 3910*4700*1450mm |
| Height of the Working Table | 850mm | 850mm |
| Glass Max Processing Size | 2440*2000 | 3660*2800 |
| Cutting Thickness | 2-19mm (air pressure control) | 2-19mm (air pressure control) |
| Cutting Speed | 0-180m/min | 0-180m/min |
| Voltage & air pressure | 380V/50HZ, 0.6MPA | 380V/50HZ, 0.6MPA |
| Loading Speed | 15-40 seconds | 15-40 seconds |
| Installed Power | 11.8 KW | 11.8 KW |
| Net Weight | 3000KG | 3100KG |
Parameters of the glass break off the table
| Technical Parameters | JT-2420 | TYJT3628 |
| Dimensions | 2500*2000*810mm | 2600*4020*810mm |

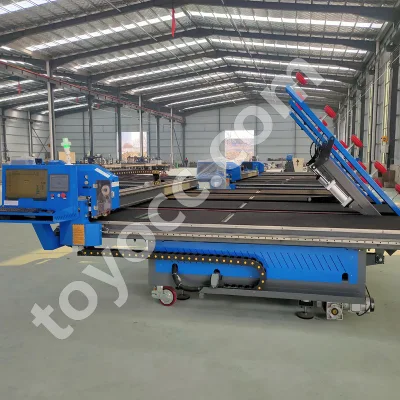

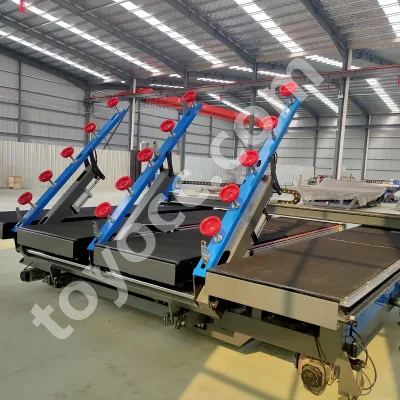

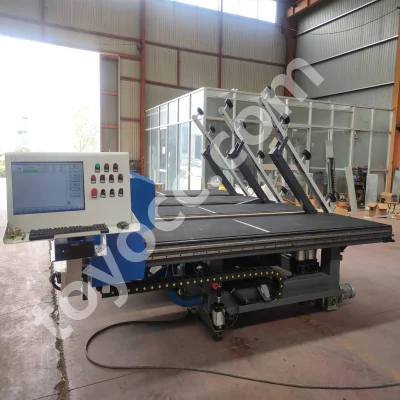

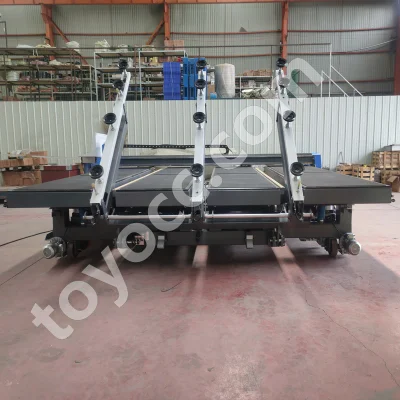

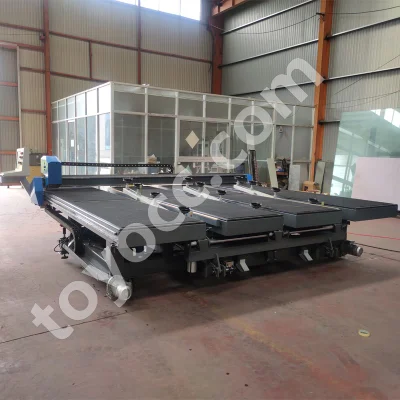

Details Showing
Packing Picture Showing
