DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery

Get the best deals on DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine at our factory. Ideal for advertising, furniture making, and 3D woodworking.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Application
  • After-sales Service
  • Related Products
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
BCM1325S
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
X,Y,Z Working Area
1300*2500*200mm|4*8FT
Spindle Power
3.0kw Water Cooling Spindle
X,Y,Z Traveling Positioning Accuracy
±0.03/2000mm
Table Surface
Vacuum Table+T-Solt Table
X,Y,Z Rail and Transmission
X Y Axis Gear Transmission, Z Axis Taiwan Tbi Ball
Max. Rapid Travel Rate
40m/Min
Max. Working Speed
30m/Min
Cutting Thickness
According Materials
Spindle Speed
6000-24000rpm
Drive Motors
Stepper Motor and Drivers
Command Language
G Code
Transport Package
Plywood Box
Specification
3280mm*2150mm*2200mm
Trademark
BCAMCNC
Origin
China, Shandong Province
Production Capacity
100 Pieces/ Month

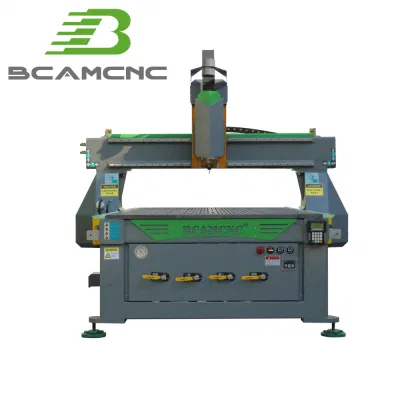

Product Description

DSP controller 3 axis wood door designs 1325 cnc router machine for advertising furniture making 3d manual woodworking cutting foam PVC carving machinery


Product Description


Machine Advantage:
1.BCM1325S cnc router machine uses European design, comply with Europe and CE standard. For whole cnc router machine, we will provide 3 years warranty, all life time technical and oversea engineer service.

2.Machine body is up to 8mm, to ensure machine have a long life time, and the bed structure is triangular and more stable. Use car-specific paint on the outside of the machine to better protect the bed and prevent rust.

3.BCM1325S machine uses inner control cabinet design , It can make sure non-professional worker touch machine electrical to make sure safety,and save space in your factory.

4.Z axis uses Taiwan TBI ball screw transmission, with high accuracy Delta inverter from China Taiwian, well control frequency and adjust spindle speed, keep bigger torque when speed of spindle lower or higher.Auto lubrication system: Automatic lubrication, no manual operation required.

X,Y,Z Working Area 1300*2500*200mm|4*8ft
Optional Working Area 1300*1300*200mm|4*4ft
 1500*3000*200mm|5*10ft
 2000*3000*200mm|6*10ft
 2000*4000*200mm|6*13ft
 2000*6000*200mm|6*20ft
Spindle Power 3.0kw water cooling spindle
X,Y,Z Traveling Positioning Accuracy ±0.03/2000mm
Table Surface Vacuum table+T-solt table
X,Y,Z Rail and Transmission X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate 40m/min
Max. Working Speed 30m/min
Cutting thickness According materials
Spindle Speed 6000-24000RPM
Drive Motors Stepper motor and drivers
Working Voltage 380V(220v)/3 phase/28amp or 220v/ Single Phase/32amp,50Hz or 60Hz
Command Language G Code
G Code Richauto A11 DSP control system
Interface USB
Software Compatibility Option:VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment Temperature: -20ºC~45ºC Relative Humidity: 5%~75%



DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery
Detailed Photos
DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery
Spindle:

3.0kw water cooling spindle with good cooling effect, low noise  long lifetime and high precision.

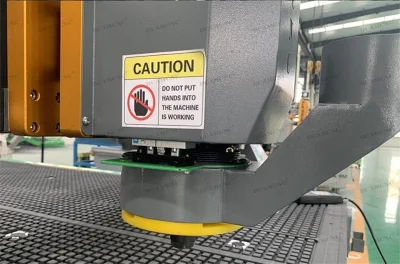

Air-tech Pro:


cnc router dust extraction system to our new design Airtech Pro system . It can absorb some smaller pieces plate and very clearly with more powerful , three time than traditional designing.

it's adsorbed very clean ,that's would be very helpful if machine landed indoor workshop or closed space.
DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery
DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery

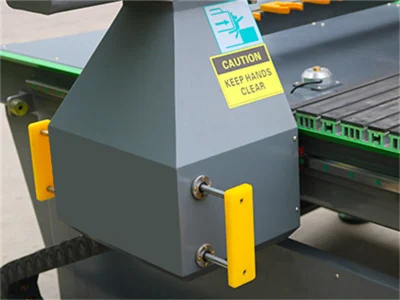

Active safety system:


Machine will stop working immediately when person touch active safety system. Providing external emergency stop function for equipment users, can effectively protect the personal safety of the equipment users, meet the European safety CE standards

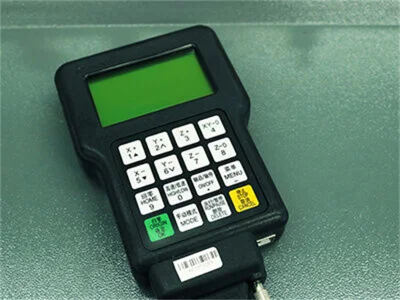

DSP controller:

DSP controller is very easy learn and operate, very suitable for beginner. You can set the tool-path by the software(Artcam, Ucancam, Vcarve, Vcarve Pro, Alphacam, ..), then copy it to U disk, then insert U disk to control system, the tool-path will show in the hand controller.
DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery
DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery



Application

The 3d cnc router machine suitable used for furniture industry, advertising industry, decoration industry, packing industry,..

* (Woodworking)Furniture industry: suitable panel cabinet, wardroble, office furniture, custom furniture, wooden doors, solid wooden furniture, tables and charis, doors and windows, painet-free doors,composite doors,  wood products,...

*Advertising industry: 3D advertising, road signs, public service ads, company logo, letter, logo, font, badge, acrylic, double swatch, PVC, ABS, aluminum, ...

* Decoration industry: Art mold, mural, screen, emboss, gift wrap, wave board, sporting goods,....

Main material : Wood, Acrylic, Plywood, Solid wood, MDF, PVC, Alumonium, foam, ABS, Corrugate board, Cardboard,......

DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery


After-sales Service

1. Machine has been adjusted before delivery.

2.English software, user manual and detailed installation & training Videos DVD for 3d woodworking cnc router will be send to clients together with machine

3.24 months guarantee of the whole Heavy duty 3 axis 3d CNC Router.

4.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.

5.Lifetime technical service.

6.We will provide the consumable parts at an agency price when you need replacement.

7.Machine has been adjusted before delivery.

8.Our staff can be sent to your company to install or adjust if necessary.

DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery

Related Products





DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery

This is our automatic tool changer cnc router machine BCM1530C, working area is 1500*3000mm ,with 8 position linear tool changer +8 pieces ISO 30 tool holders.



DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery
This is our automatic loading and unloading cnc router machine BCM1325E, working area is 1300*2500*200mm ,with 12 pieces ISO 30 tool holders.

Company Profile

BCAMCNC was founded in 2002,  specialize in cnc router machine, CO2 laser machine, fiber laser machine, plasma cutting machine more than 15 years. BCAMCNC always adhere advanced technology combined with satisfied user experience,make more efficient working and more stable cnc machinery for our client. Now we have expert staff more than 100 , 10 sales teams, 2 product R&D teams , 2 after-sales service teams Products sell well in Europe, America, Australia ,Africa, Asia etc, welcomed by consumers for its Strictly abide by the principles "Credit First, Quality First, Customer First and Service First."

DSP Controller 3 Axis Wood Door Designs 1325 CNC Router Machine for Advertising Furniture Making 3D Manual Woodworking Cutting Foam PVC Carving Machinery

FAQ

Q1: How do I get the best price?
A: Different type of CNC machine apply to the different price.

Q2: What machine suits me best?
A: Different material and the different model apply to the different machine.Please tell us what's material you want to cutting or engraving ?And what's MAX size of carved material ?We will recommend the most suitable model and the best price for you.

Q3: What should I do if the machine fails during warranty period?
A: Just contact us----our sales are online for 24-hours and ready to help.Replacement of damaged parts for free(make sure it is not broken because of wrong operation).The CD and operation manual----It shows the most common failures in working processing and how to solve the problems.

Q4: Are you trading company or manufacturer?
A: We are a factory direct sale, can guarantee you got the best product at the best price.All the products have CE, ISO certifications, all the machines are tested well before delivery. There is a 12 months warranty.

Q5: How long is your delivery time?
A:Generally it is a weekday if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to your quantity.


PS: The sample provided by this product is the price of the engraving sample. The buyer needs to bear the freight, and all interpretation rights belong to the seller.
