Product Description

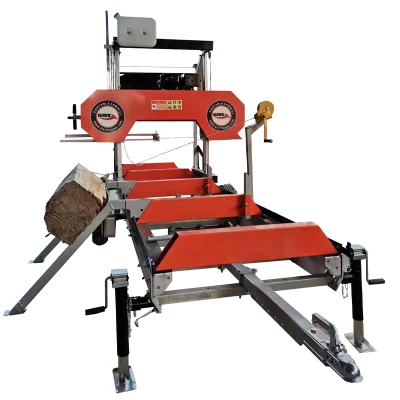

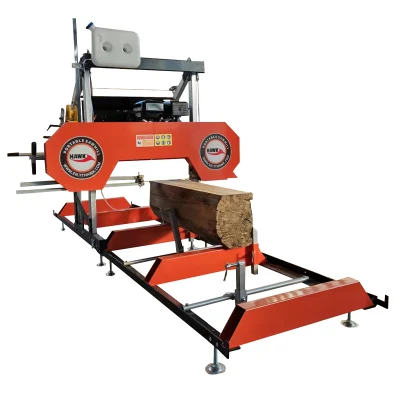

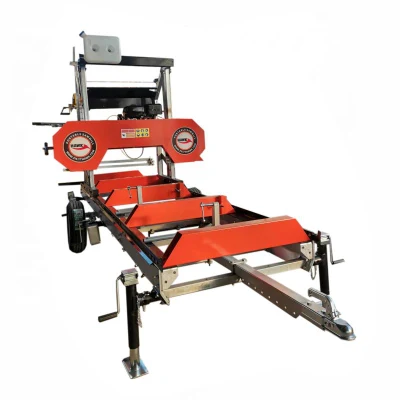

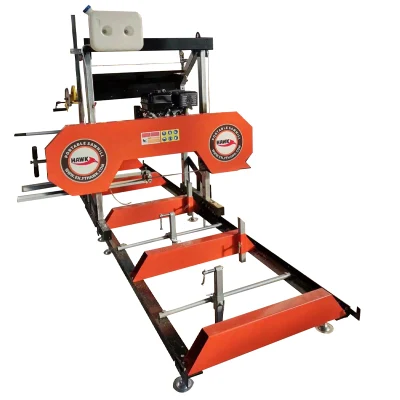

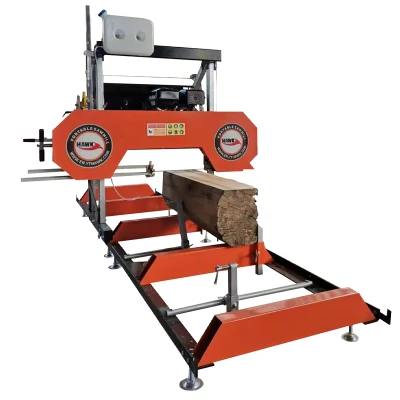

HAWK HS Series Portable Sawmill
HAWK HS series portable sawing machine sawmill has excellent cutting ability, can saw 660-910(26'-36') mm diameter logs into 610-860 mm wide planks, up to 7 meters long, and optional 1 meter extension can be sawed for longer length. the HS series portable sawmills are manufactured in the CHINA, using high-quality steel and industrial-grade powder-coated coatings, with a steel box bed frame for added durability, and with gas, diesel or electric sawmill options, fast up /down sawing Head, gravity feed saw blade lubrication, steel side support, steel log clamp, optional saw head power feed, optional HST series trailer, etc., suitable for multifunctional, reliable and reliable portable sawmills worldwide.
Model(Sawmill) | HS22G | HS26G | HS31G | HS22E | HS26E | HS31E |
Power | Gasoline 7HP (LIFAN, Manual start) | Gasoline 9HP (LIFAN, Manual start) | Gasoline 9HP (LIFAN, Manual start) | Electric Motor 5.5KW | Electric Motor 7.5KW | |
Displacement | 212cc | 301CC | 420CC | 400V 50HZ 3phase | ||
Cutting capacity | 559*135*2794mm (22"*5.3"*110") | 660*165*2794mm (26"*6.5"*110") | 790*165*3279mm (31"*6.5"*129") | 559*135*2794mm (22"*5.3"*110") | 660*165*2794mm (26"*6.5"*110") | 790*165*3279mm (31"*6.5"*129") |
Frame | 2PCS | 4PCS | 2PCS | 4PCS | ||
Safe cutting Speed | 13-15s/m | |||||
Blade speed | 17m/min | |||||
Distance teeth | 17m/min | |||||
Blade Wheel Dia. | 475 mm (18.7") | |||||
Dimension | 4064*1778*1800mm (160"*70"*71") | |||||
Track length | 4064mm(160") | |||||
Packing | P1: 2150*570*820mm, P2: 2150*600*870mm | |||||
Weight | 458kg(4M) | 498kg(6M) | ||||
20"/40"HC | 36pcs/70pcs | 30pcs/62pcs |
Model(Trailer) | HST4 | HST6 |
Trailer Axle | 50x50mm | |
Trailer Size(L*W*H) | 4065(+1000mm drawbar)x900x700mm | 6065(+1000mm drawbar)x900x700mm |
Trailer wheels with Fenders | 165/70R13 | |
Trailer loading capacity | 1500KG | |
TrailerTrailer Lights | LED light kit | |
Trailer leveling jacks | 2/4pcs | 2/4pcs |
Trailer Ball Coupler | 2" (50mm) | |
Log Loading Ramp | Max. 1350kg | |
Log Loading Winch | 3000 lbs | |
Packing | 2150*550*500mm | 2150*590*550mm |
Weight | 350kg | 415kg |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging Details: Iron frame packaging or subject to customer requirement.
Delivery Details: Shipped about 20 -30 days after payment.
We'll test the band sawmill portable before delivery to ensure that every machine is qualified.It is our responsibility, we are responsible for our customer.And then we will load the band sawmill to the container car,delivery it to the port.
The HAWK HS series potable sawmill horizontal are very suitable for large-scale production in sawmills, and is widely used in wood cutting can black cherry&hardmaple&European poplarby by customers,and tested by local customers in Europe and American with local hardwood., it's favored by customers.
Advantage of sawmill:
1.The forestery machinery has the features of high cutting speed,high cutting rate,high quality of final product,great reduce the lost of sawdust;
2.It is simple installation, easy operation, labor saving , and high productivity;
3.Simple , safe and pro-environment;
4.Precise control of wood thickness, high cutting precision;
5.Band sawmill high cutting efficiency, smooth,high flatness of the cutting plate;
6.The thickness of processing wood can be adjusted according to your need;
7.There's no need the professional sawyers, the ordinary workers can operate the machine expertly.
1. Are you the manufacture?
Yes, We are specializing in the forestry machines area near 10 years. We have mature product lines.We are based in Shandong, China, start from 2019,sell to Eastern Europe(30.00%),North America(20.00%),Northern Europe(20.00%),South America(10.00%),Africa(5.00%),Western Europe(5.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Sawmill portable,horizontal sawmill,cone splitter,tree shear,log grapple,grab bucket and excavator attachments etc.
4. why should you buy from us not from other suppliers?
Yantai Hawk Hydraulic Equipment Co.,Ltd. is a leading manufacturer for excavator attachments in China. Our mission is: Quality first, Service foremost, and Innovation paramount.
5. How can i find a most suitable saw machine? We have most professional sales manager to help you choose the machine, and also, our strong engineer group will back up for anytechnology problems.
7. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CAD,AUD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
