Basic Info.
Model NO.
BYPQ
Work Table Dia
φ6 M/φ7m/φ10.5m
Cutting Thickness
2-150 mm
Maching Weight
3300 Kg/3500kg/3800kg
Cutting Size
W1.5×l2×l1.2m(4PCS/5PCS/8PCS)
Transport Package
Well Protected Package
Specification
CE\SGS
Trademark
BCD bedding machinery
Origin
Nanjing, China
HS Code
84774090
Production Capacity
30 Sets/Month
Product Description

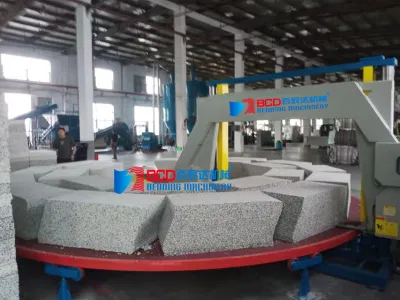

Foam Disc Slice Cutting Machine (BYPQ)
Main application and performance
This machine is mainly used for continuous horizontal cutting of multi foam blocks. Its feature as: The most advanced inverter speed controller technology, fully diigital controlling, accurate cutting, high reliability, high work efficiency. The max. Diamter can beφ 10.5M(newly developped), it can continuous cut foam blocks at W2150× L4500mm. (Vacuum work table is optional).
| Model no. | BYPQ-60 | BYPQ-70 | BYPQ-100 |
| Cutting size | W1.5×L2×L1.2M (4pcs) | W1.5×L2×L1.2M (5pcs) | W1.5×L2×L1.2M (8pcs) |
| Cutting size max. | W1.5×L2×L1.2M (4pcs) | W2.15×L3×L1.2M (3pcs) | W2.15×L4.5×L1.2M (3pcs) |
| Total power | 8.12KW | 8.92KW | 10.52KW |
| Table rev | 0~3.5r/min | 3~3.0r/min | 0~2.0r/min |
| Blade length | 8940mm | 10000mm | 10240mm |
| Table dia. | φ6M | φ7M | φ10.5M |
| Slice thickness | 2~150mm | 2~150mm | 2~150mm |
| Machine weight | 3300Kg | 3500Kg | 3800Kg |
| Machine dimension | L6900×W6000×H2400mm | L7900×W7000×H2400mm | L11.500×W11000×H2400mm |
