Basic Info.
Model NO.
HC-650
Type
Roll Slitter
Work Method
Circular Knife Slitting
Structure
Cutting Part
Packaging
Wooden Pallet
Classification
Copper Foil Slitting Machine
Applicable Process
Process Materials
Suitable Substrates
Adhesive Label, Paper, Film, Tape, Aluminum Foil
Packaging Material
Wood
Industry
Electron, Labeling Printing, Packing
Speed
100 M/Min
Precision
0.03 mm
Machine Body Thickness
Heavy Steel Plate (16mm)
EPC/Lpc
Ultrasonic Correction
Inverter
Yaskawa (Japan)
Knife
Knipia (Korea)
Pneumatic Element
Airtac(Taiwan)
Option
Peeling Rewinding Function
Certification
CE, SGS
Transport Package
Pallet
Specification
1850*1400*1300 mm
Trademark
LOYAL
Origin
China
HS Code
8441100000
Production Capacity
100
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
High Precision Copper Foil Slitting Rewinding Machine
Technical parameter
| Model | HC-650 |
| Max unwinding width | 650mm |
| Main motor power | 2.2kw |
| Speed | 100m/min |
| Precision | ±0.03mm |
| Unwinding roller diameter | Φ600mm |
| Rewinding roller diameter | Φ450mm |
| Machine weight | 1000kg |
| Machine overall dimension | 1850*1400*1300mm |
Use
The automatic slitting machine is professionally for the sticker, adhesive label, PET protective film, PE foam tape, PE, OPP, paper, optical film, etc. slitting and laminating.
It is an ideal processing machine of large-scale reel material slitting such as tape, electronic film, paper, label, plastic package films, metal film, etc., to achieve a large volume into a small volume directly, saving processing costs and reduce waste of raw materials.
Characteristic
This type of slitting machine enjoys automatic detection, rectification, and metering. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. Especially used in the electric and optical industry.

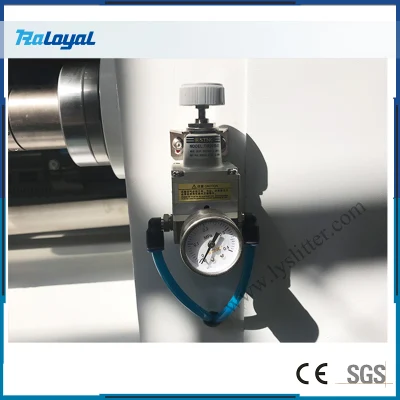

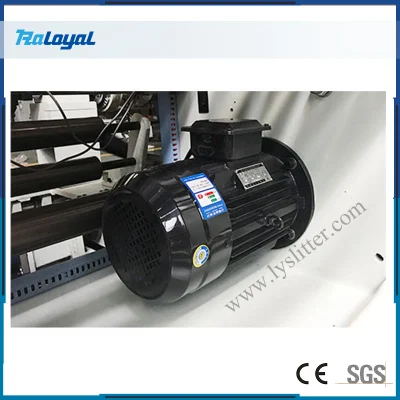

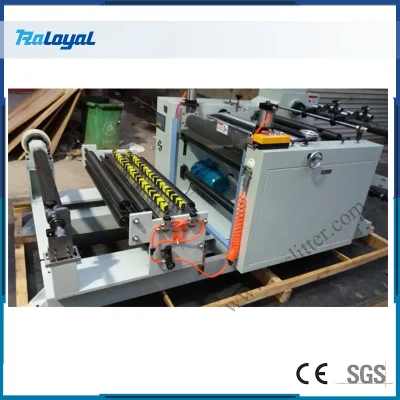

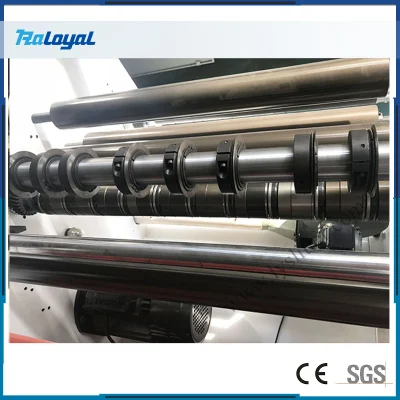

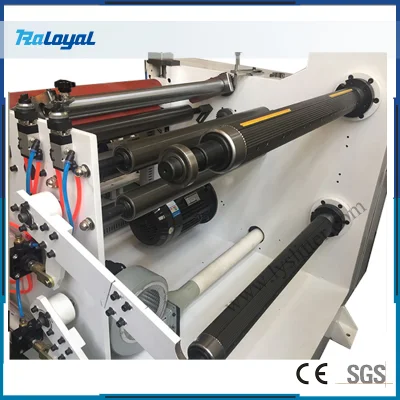

More details of high precision copper foil slitting rewinding machine
Find the special purpose and multi-solution from Raloyal
Machine running in client's factory
Packing and shipping
