Product Description
The cutting machine used for die cutting disposable blister or foam packing,EPE foam packaging,automatic/plane interiors etc.large materials sheet
1.Features and Advantages
1.controlled by PLC(programmable logic controller),with touching screen,to set and micro-adjust working pressure,cutting depth,feeding speed easier,faster and more precise.2.double automatic working tables,increases ther output twice or triple.
3.auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure any working area.
4.powered by hydraulic system,slow down when the cutting die touches material,to confirm the precision between upper and bottom for thick materials.
5.central automatic lubrication system,increases machine durability,prolong the working time.
2.Product Specification
| Model | Cutting Force | Dimension/(mm) | Cutting Area | Moter | Stroke | Net Weight |
| HG-B60T | 60 Tons | 3000*2300*1570 | 810*1400mm | 5.5kw | 50-240mm | 4500kg |
| HG-B80T | 80 Tons | 3000*2300*1570 | 810*1400mm | 7.5kw | 50-240mm | 5000kg |
| HG-B100T | 100 Tons | 3000*2300*1570 | 810*1400mm | 7.5kw | 50-240mm | 5500kg |
| HG-B120T | 120 Tons | 3000*2300*1570 | 810*1400mm | 11kw | 50-240mm | 6300kg |
| HG-B150T | 150 Tons | 3000*2300*1570 | 810*1400mm | 11kw | 50-240mm | 7000kg |

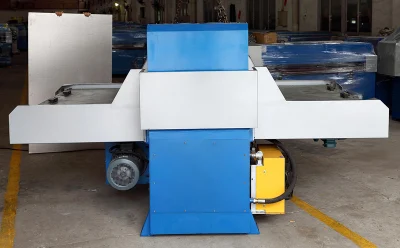

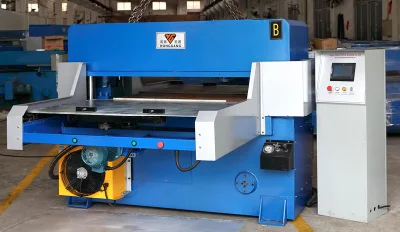

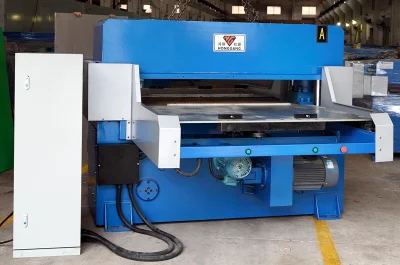

3. The Cutting Machine Working Show
4. Application Materials:
The Cutting Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,etc.
5. FQA:
1)What's warranty of machine?
12 months WarrantyLife-long maintenance service for machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.
6)Are you a factory or trading company?
We are a factory and manufacturer
Don't know how many ton you need?
Please contact us!
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:
| Material: | |
| Max. material width: | |
| Max. material thickness: | |
| Max.cutting length: |
