Basic Info.
Model NO.
HY-1510BAE-7
Speed
Medium Speed
Type
Knife Type
Binder size
45mm or 55mm
process
binding and cutting for quilt
Needle number
Single needle
Max stitch length
9mm
Transport Package
Wood Case/ Normal Carton
Specification
1CBM
Trademark
HONYU
Origin
Zhongshan
Product Description
WALKING FOOT QUILT SEWING MACHINE, HEAVY DUTY SEWING MACHINE FOR MATTRESS

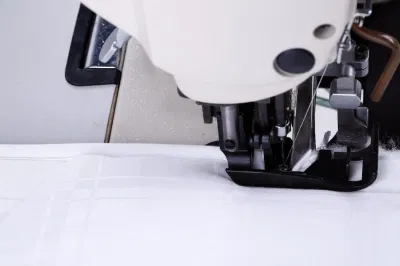

HY-1510BAE Direct drive cutting and binding AIO machine
Product Description:
1. Built-in safety and energy saving direct drive servo motor and pneumatic controller components for facilitating
maintenance.
2. Evenly filled binding edges by trimming the material edges directly in front of the binder.
3. Equip pneumatic presser foot lifting, auto oil supply, up and down needle positioning, cutting system, binding device, handle back tacking, handle adjusting alternating amount of presser foot button and other functions.
4. Alternating presser foot, needle stitch, feed dog and the binding device compose four parts feeding construction, when dealing with the edge cover sewing of straight or corner position, it can ensure the smooth and non-shifting binding effect.
Typical Field of Application:
It's suitable for binding process for quilt and mattress.
Product Advantages:
2)Cutting device can be attachable and convenient for binding off.
2) Pneumatic assisting layout device: functions of cooling cutter and blowing waste material out.
4. Border size:
1)Quilted binding device: binding device entrance width 45mm, trimming with 12.5mm.
2)Mattress binding device: binding device entrance width 55mm, trimming width 14.5mm.
COMPANY HONOR
EXHIBITION DISPLAY
HY-1510BAE Direct drive cutting and binding AIO machine
| Model No. | HY-1510BAE-7 | |
| Feeding system | Alternating presser foot, feed dog and needle feeding | |
| Max sewing speed | 2000 s.p.m | |
| Shuttle diameter | Ф28mm | |
| Applied needle | DP×17 #18-#23 | |
| Max stitch length | 9mm | |
| Max alternating presser foot | 6.5mm (Manually adjusted by knob) | |
| Max presser foot lifting height | 16mm | |
| Auto trimming | √ | |
| Auto back tacking | √ | |
| Presser foot lifting height by air | √ | |
| Auto oil system | √ | |
| DL function | √ | |
| Operation space | 255×103mm | |
Product Description:
1. Built-in safety and energy saving direct drive servo motor and pneumatic controller components for facilitating
maintenance.
2. Evenly filled binding edges by trimming the material edges directly in front of the binder.
3. Equip pneumatic presser foot lifting, auto oil supply, up and down needle positioning, cutting system, binding device, handle back tacking, handle adjusting alternating amount of presser foot button and other functions.
4. Alternating presser foot, needle stitch, feed dog and the binding device compose four parts feeding construction, when dealing with the edge cover sewing of straight or corner position, it can ensure the smooth and non-shifting binding effect.
Typical Field of Application:
It's suitable for binding process for quilt and mattress.
Product Advantages:
1. Direct drive motor and pneumatic controller component: Internal 850W direct drive motor and pneumatic controller components are easy to install and maintain, continue strong penetrability as always.
2. Cutting, binding and sewing material at the same time:

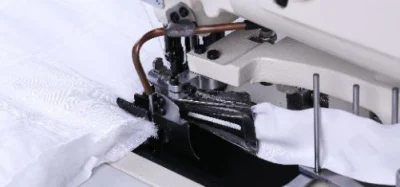

1)It's equipped with the knife before binding device, so that can achieve cutting, binding and sewing material at the same time. The effect is average and full. 2)Cutting device can be attachable and convenient for binding off.
3. Layout tank and pneumatic assisting layout device:

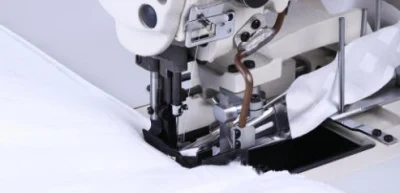

1) Easy removing of the trimming waste via large layout tank and pneumatic assisting layout right beside the edge trimmer. 2) Pneumatic assisting layout device: functions of cooling cutter and blowing waste material out.
4. Border size:
1)Quilted binding device: binding device entrance width 45mm, trimming with 12.5mm.
2)Mattress binding device: binding device entrance width 55mm, trimming width 14.5mm.
