Basic Info.
Model NO.
LY-701
Applicable Process
Process Materials
Suitable Substrates
BOPP, Adhesive, OPP Tape
Packaging Material
Wood
Use
All Kinds of Tapes Slitting
Speed
350 Times/Min
Inverter
Taiwan Brand
Motor
Taiwan Brand
Loading
Manual
Control System
PLC
Touch Screen
Weinview
Automatic Angle System
Mitsubishi
Shafts
1, 2, 4 Shafts
Delivery Time
45 Work Days
Certification
Ce, TUV
Warranty
12 Months
Transport Package
Pallet
Specification
3100*1500*1700mm
Trademark
LOYAL
Origin
China
HS Code
84778000
Production Capacity
100 Sets/Year
Product Description
Industrial packaging machinery parts foam tape cutting slitting machine
Technical parameter
| >> SPECIFICATIONS | |
| > Cutting diameter | 350mm |
| > Cutting speed | 35cuts/min |
| > Cutting precision | ±0.05mm |
| > Max. length of cut | 1600mm |
| > Paper core I.D. | 32-76.2mm |
| > Cutting width | 3-1600mm |
| > Blade diameter | 150-350mm |
| > Blade speed | 360-1800rpm |
| > Weight | 1150kg |
| > Machine dimension(L*W*H) | 3100mm*1500mm*1700mm |
| > Power source | 380V 50HZ 3PHASE |
| > Air source | 5KG ( prepared by user) |
Use
This machine is suitable for cutting various materials such as PVC, OPP, PE, Crepe paper, Double-side tape etc.
Features
1. Touch screen control panel.
2. Control panel provides major functions: material and blade running speed, width counter, number of cuts
counter (LED touch screen operation).

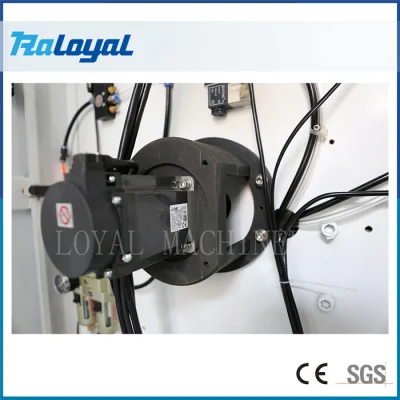

3. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
4. PLC programmable control.
5. Two axes are simultaneously cut and equipped with an automatic flip system, which greatly improves work
efficiency.
2. Control panel provides major functions: material and blade running speed, width counter, number of cuts
counter (LED touch screen operation).
3. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
4. PLC programmable control.
5. Two axes are simultaneously cut and equipped with an automatic flip system, which greatly improves work
efficiency.

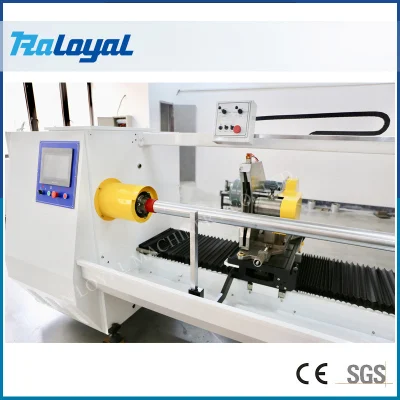

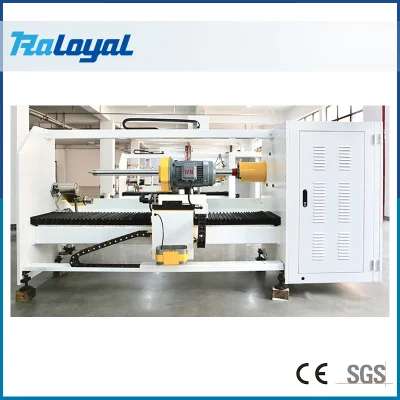

More details of Industrial packaging machinery parts foam tape cutting slitting machine
Why us
Loyal engineers focus on the innovation of the paper straw forming continuously.
We combine powerful construction and aesthetic characteristic, while maintaining the highest standard of quality.
------Q&A
In order to supply products of high consistently high quality and reliability, Loyal staff strengthen Quality Assurance protocols and procedures as important part of overall quality, safety management.
------Detail
Care about every details to improve our dear customers operation efficiency and convenience.
------After-sale service
Loyal team will respond clients inquiry or questions within 24 hours.
Contact us without hesitate! We are willing to send you in greater detail!
