Basic Info.
Model NO.
TYJT2420-3628
After-sales Service
30 Years
Cutting Thickness
2-19mm
Cutting Speed
0-180m/Min
Loading Speed
15-40 Seconds
Height of The Working Table
850mm
Driven
Electircy and Air
Guarantee
One Year
Delivery Days
25 Days
Voltage
380V-50Hz-3 Phases or Custom
Operation Type
Remote
Cutting Software
Available
Optimization Software
Available
Language
English/Chinese
Operation Manual
Available
Technical Support
Available
Transport Package
40hq
Specification
3630*4700*1400mm
Trademark
OEM
Origin
Shandong China
HS Code
8464901100
Production Capacity
10000 Pieces/Year
Product Description
CNC Cutting Machine Series
Loading, Deliver, Cutting & Break off table - 4 in 1
Loading, Delivery & Cutting - 3 in 1
Loading & Cutting - 2 in 1
How to know one glass cutting machine is good or not?
Everyone would like to get a good glass cutting machine. But how to know it is good or not?
Now, we are going to share with you some information and hope it is helpful to you.
Firstly, let's see the countertops
All the countertops are made of PVC resin plate, with high hardness, no deformation, waterproof, and oil-proof. Don't choose the foam board, because the disadvantage of it, is easy to deform. Also, the shortcomings of density board are fear of water & oil, high humidity, and easy deformation. The entire surface of our PVC resin board is processed by a processing center, and the surface is very smooth. The unprocessed countertop has poor flatness. When cutting 3mm thick glass, the glass is easy to crack. The thinnest glass thickness that our machine can cut is 2mm.
Now, let's move on to the whole frame structure
The whole frame is annealed after welding. The purpose of annealing treatment is to release the internal stress of steel welding and prevent deformation during later use, thereby affecting the cutting accuracy. Without annealing heat treatment, the cutting accuracy will be greatly reduced.
The supporting surface of the whole machine for installing the linear guide rail is processed, and the beam is also annealed steel beam. If you use aluminum beams, it will lead to poor cutting accuracy and poor stability. The cutting accuracy of our cutting machine can be guaranteed to be ≤0.2mm.
When the machine sucks glass, it works with a telescopic arm, and the machine does not move back and forth. We designed the linear guides on both sides to be used flat, and the linear guides used in the flat can bear even force, long life, and good stability. If it is used upright, only the upper side is stressed, and the machine makes a lot of noise when cutting glass.
Lastly, let's see the configurations of the main parts
- Japan Panasonic Sensor
- German Bohle cutter head
- American Honeywell Electrical components - Relay
- Taiwan AirTAC air cylinder
- Taiwan Meanwell Power Supply
- Japan Mitsubishi PLC
- Two motor heads to drive the cutting head
- Whole machine is free to move, and 360-degree rotate
Parameters of the cutting machine
| Technical Parameters | TYJT-2420 | TYJT3628 |
| Dimensions | 3630*4700*1400mm | 3910*4700*1450mm |
| Height of the Working Table | 850mm | 850mm |
| Glass Max Processing Size | 2440*2000 | 3660*2800 |
| Cutting Thickness | 2-19mm (air pressure control) | 2-19mm (air pressure control) |
| Cutting Speed | 0-180m/min | 0-180m/min |
| Voltage & air pressure | 380V/50HZ, 0.6MPA | 380V/50HZ, 0.6MPA |
| Loading Speed | 15-40 seconds | 15-40 seconds |
| Installed Power | 11.8 KW | 11.8 KW |
| Net Weight | 3000KG | 3100KG |
Parameters of the glass break off table
| Technical Parameters | TYJT-2420 | TYJT3628 |
| Dimensions | 2500*2000*810mm | 2600*4020*810mm |
Details Showing

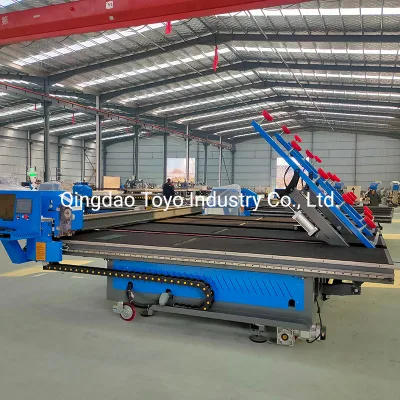

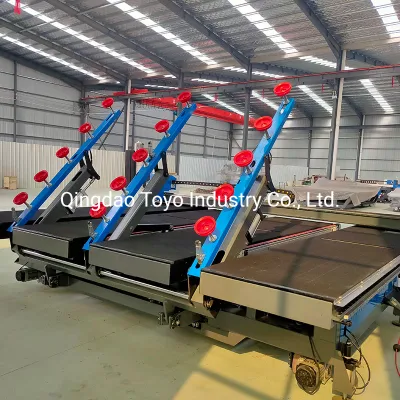

 | Smart suction After one-touch start of the glass, the machine automatically raises the boom, automatically walks and rotates to find the position and angle of the glass, and is equipped with a suction monitoring system to automatically lift the glass to the cutting table after the glass is sucked, automatically scan and cut the glass sheet. |
 | Smart typography Input the glass size, the size of the glass to being cut and the cutting shape into the control panel, leaving the left work to this machine, highly improved the work efficiency and time saving. |

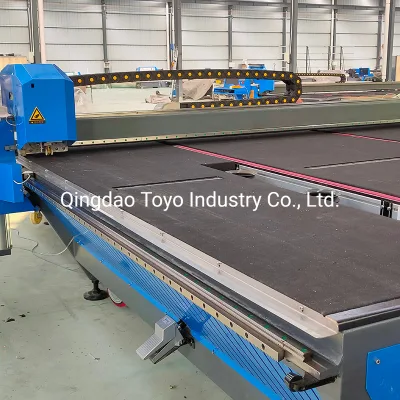

 | Automatic cutting The cutter head is made of German Boler head and can be rotated freely in 360 degrees to cut any shape. Computer control, automatic cutting according to optimized layout. |

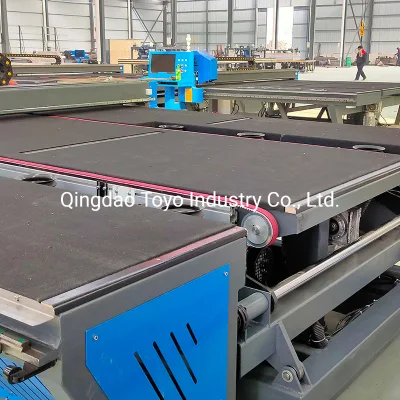

 | Air floating platform The machine has an air floating system, and more than one hundred air holes are evenly arranged on the cutting table to ensure the stability of the airflow. It is very easy to push and pull the glass. |
Picture Showing
