Basic Info.
Product Description
YC-1625L
Model: YC-1625L Machine size can be customized
Applicable cutting materials: knitted material, tatting material, fur, PU leather, jean demin, canvas, foam, artificial leather, diablement fort, blend fabrics,Cotton & Linen, etc
Application: widely used in garment, bag, belts, footwear, shoes insole, wallets and leatherwear industriy and so on.
Functions: cutting, punching , drawing.
Standard Equipments: oscillating knife Driven rotary punching tool universal cutting tools
Parameter:
Model | YC-1625L | YC-1630L | YC-1625A |
Working area | 2500×1600mm | 3000×1600mm | 2500×1600mm |
Operation properties | continuous cutting with high efficiency, 7*24 with zero downtime | ||
Safety device | Infrared sensor; sensitive response; safe and reliable | ||
Maxi cutting speed | 1200mm/s | ||
Translational velocity | 1500mm/s | ||
Applicable materials | KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc | ||

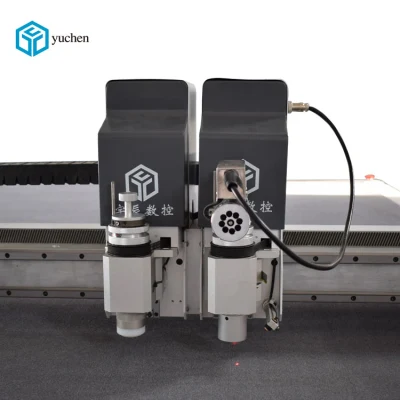

Multifunctional head | Oscillating cutting tool, Rotary cutting tool, Punching cutting tool, Drawing tool | ||
Cutting thickness | 0.1-20mm (subject to material) 0.1-10.0mm (subject to the material cutting) | ||
Cutting tolerance | ±0.1mm | ||
Transmission interface | Ethernet | ||
Driven system | Motor: Panasonic Linear rail: Hiwin | ||
Fixed mode | Vacuum absorb | ||
Supply voltage | 220V 380V±10%,50HZ AC 220V 380V±10%,50HZ | ||
Rated power | 11KW | ||
