Basic Info.
Model NO.
LTG-500
Application
Paper Pet PVC PE PP PC BOPP Sticker in Roll
Automatic Grade
Automatic
Power
1.2kw
Weight
300kg
Certification
Ce and ISO 9001:2008
Function
Roll to Sheet Cutting for Paper Pet PVC PE PP, etc
Keyword
Roll to Sheet Cutting
Cutting Speed
110 M /Min
Warranty
12 Months
Transport Package
Wooden Boxes
Specification
(L1450xW980xH1300)mm
Trademark
LINGTIE
Origin
Xiamen, China
HS Code
847780000
Production Capacity
35 Sets/Mouth
Product Description
Cutting machine features:
1. The machine is suitable for cutting copper foil, aluminum foil, PET, PC, PVC, PCB, FPC, lithium battery membrane, flannelette, sheet metal, etc. All kinds of coil material cutting.
2. This machine adopt servo motor to pull material, imported PLC touch screen operation, can be set arbitrary length, quantity, speed, can cut single authoritarian.
3. This machine is used with the function of automatic feeding, loading axis adopt gas rose axis, make the operator handling convenient.
Main Technical Specification:
| Model | LTG-360 | LTG-500 | LTG-600 |
| Voltage | 220/380v | 220/380v | 220/380v |
| Power | 0.75kw | 1.2kw | 1.5kw |
| Weight | 250kg | 300kg | 400kg |
| Cutting Width | 0-360mm | 0-500mm | 0-600mm |
| Cutting Length | 0.1-9999.9mm | 0.1-9999.9mm | 0.1-9999.9mm |
| Machine Size | L780xW920xH1300mm | L980xW1450xH1300mm | L1080xW1550xH1300mm |

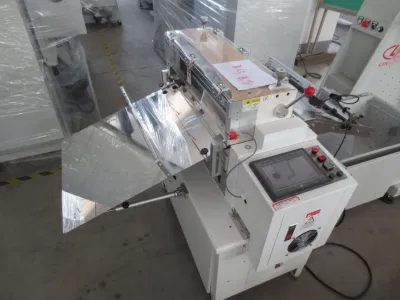

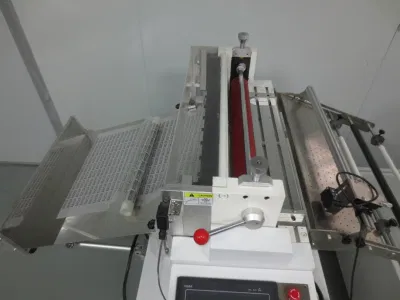

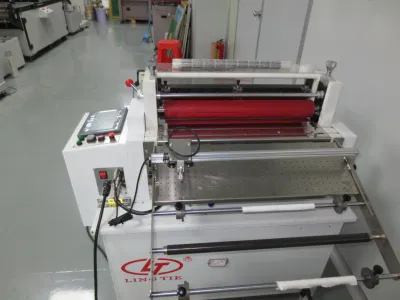

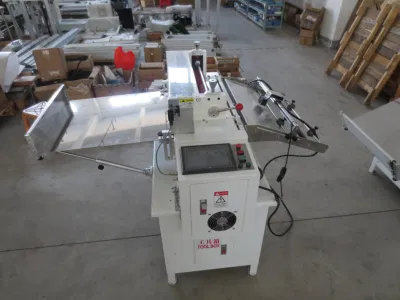

Machine Photos:
Company Honor:

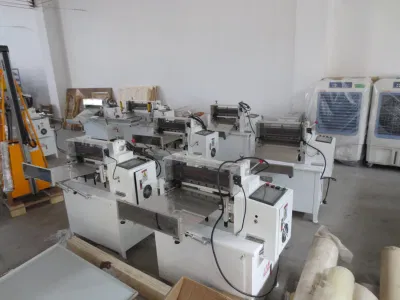

Workshop:
Exhibition:
Our Team and Customers:
Machine Package:
Wrapped by plastic film, packed in wooden box lined with cushion foam.
