Basic Info.
Product Description
Tire Ring Cutter / Strips Cutter / Bead wire separator

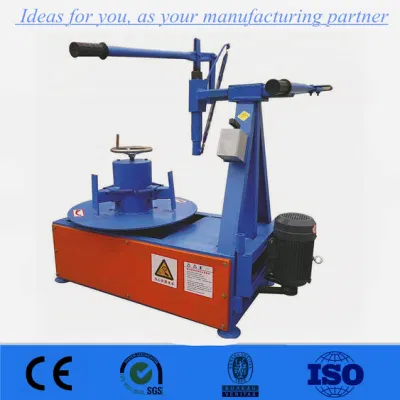

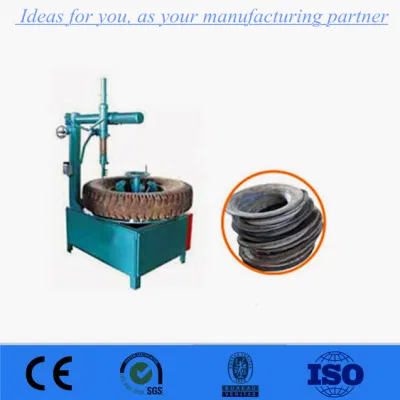

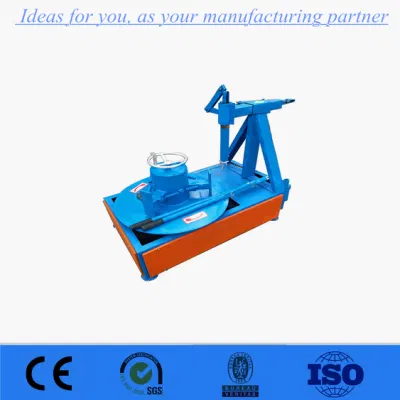

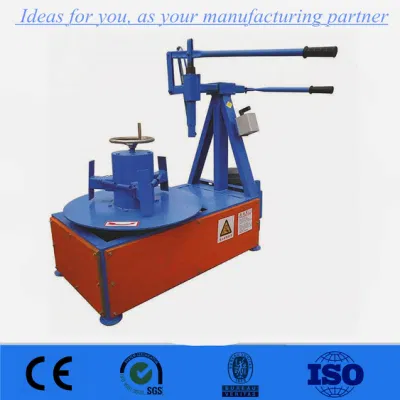

1-1.Tire Ring Cutter(Max.size: 1200mm):
Item | Specification |
motor power | 5.5 |
Speed of main screw | 46.8 r/min |
MAX Diameter of tyre | 1200mm |
Dimension | 1100*900*1700mm |
Purpose :To cut the steel ring from the tyre
| |
1-2.Loop machine:
Item | Specification |
Motor power | 15 KW |
Linear speed of front roller | 15.5 m/min |
Ratio of speed | 1.1 |
Dimension | 1520*1150*12101mm |
Purpose:To Separate the steel ring from the rubber after 1 step. | |
1-3.strip cutter:
Item | Parameter |
Motor Power | 5.5kw |
Disc Diameter | 380mm |
Rotate Speed | 18.4r/min |
Dimension | 1290*870*1550 |
Purpose: To cut the old tyre intostrip
| |
1-4.block cutter:
tem | Specification |
motor power | 11kw |
Speed of main screw | 420 r/min |
Out diameter of cutter | 200mm |
Dimension | 1130*830*1100 |
Purpose: To Cut the strip into block | |
5-10 mesh: runway, the school playground, garden trails, bowling alleys, sidewalks, composite rubber floor tile, anti-static floor tiles, artificial lawns, playgrounds, artificial turf soccer pitches, sports venues and entertainment markets kindergarten tennis and basketball courts.
10-20 mesh: rubber tiles, plastic-rubber runway, lawn quartz sand grain leather cottonseed meal, tennis courts, volleyball courts, golf courses, aircraft, stadium, basketball courts and recreation fields, EPDM safety mats, gym mats, all kinds of stadium floor mattress.
30 mesh: plastic insulation material, waterproof materials, earthquake, gaskets, roof and wall waterproofing membrane, modified bitumen additives, reclaimed rubber, livestock, straw, fender, multi-purpose pad, stables pad.
40 mesh: reclaimed rubber, waterproofing membrane, modified bitumen additives, carpet pads, sleepers, rubber sheet, livestock straw, rubber water-stop, gate Water Stop, bearing, seal, buffers, brake lining brake sets, drains, gloves, rubber band, elastic band, roof signs, brick roof lining materials, sanitary pumps, wall adhesive, wheel locator, pumping sand pump pad, fender, multi-functional mats, the stable mat, resistance burning materials, insulation materials, rubber and plastic rubber-soled, windows sealed tape and other rubber products and rubber used for agricultural purposes (milk) Polystyrene.
60 mesh: sleepers, rubber sheet, waterproof membrane, reclaimed rubber, tire mats, car body at the end of sealing, waterproof ring, rubber, miscellaneous parts and replace the original production of raw rubber rubber products.
80 mesh: modified asphalt additives, reclaimed rubber, waterproofing membrane, the size of tire additives, sleepers, deceleration road humps, sealing strips, buffers, foam rubber, pearl pad, rubber piston, rubber products such as brake lining brake.
THE OTHER MACHINE FOR TYRE RECYCLING INDUSTRY:
THE PRODUCTION LINE WAS PASS"BV" AUTHENTICATION:
Why choose us?
We are ready to give them a turnkey solution, by designing the line according to their space, designing all electrical Installation, water installation, civil foundation, training their people and proving that they will get the targets for production according to the design.
The cost of the machinery they are paying is one off but the correct production design and machine configuration in order to get the production targets is the most important point. Even if somebody got the cheapest machine quotation, at the end of the day, what is count are the production quantity, quality and the durability of the machines so to cover the investment in the correct time.
A satisfies customer can bring you ten more customers but one disappointed customer can send away one hundred customers. Reputation in the market is the most important factor for keeping business healthy and in growing line.
ABOUT OUR COMPANY:
Our company is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. our main products: plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
OUR COMPANY BANNER: "THE HONESTY IS THE ROOT,
A PROMISE IS A PROMISE".
1,Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2,Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3,Can you supply sample?
Yes,we can supply you free small samples,but air cost will be paid by customers.
4,What's your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5,Are you near to Qingdao airport?
Yes,only within 1.5hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6,Do you have any certificate of your products?
Yes, CE, BV, SGS, REACH.
9,Do you have any certificate of your company?
Yes, ISO 9001:2000.
10,Did your products apply the patent?
Yes,we have waste tyre recycling machine & rubber tile making machine protector patent.
Welcome new and old customers to visit and inquiry, We will be patient answer customer all of the questions.
