Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine

Get high-quality PVC edge banding with our full automatic woodworking machinery. We are a factory specializing in MDF edge banding and trimming machines.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
WF50D
Certification
CE
Panel Thinkness
10-60mm
Min.length panel
120mm
Min.width panel
15~50mm
Manufacturing Principles
Glue Tank Underneath
Customized
Non-Customized
Voltage
380V or 220V
Power
4900W
Motot Power
Polishing 400W/Trimmer 1600W
Heating Power
800W
Gluing for
Straight
Trimming for
Straight Only
Polishing for
Straight
Pressure
<6kg/Cm Square
Transport Package
Plywood
Specification
2250x650x1250mm
Trademark
Woodfung
Origin
China
HS Code
8465940000
Production Capacity
500 Sets/Month

Product Description



Product Description

WF50D automatic all in one woodworking curve edge banding machine pvc edge banding trimmer

All in one machine is edge banding,edge trimmer,end cutting,polishing machine

Woodworking Machinery Manual PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Mini Automatic

WF50D all in one woodworking wood pvc edge banding machine trimming/end cutting/buffing manual machine specs:
edge banding thickness 0.3~3.0mm banding width 15~50mm
Curve banding dia 20mm cutting width 50mm
heating power 800W Motot power polishing 400W/Trimmer 1600W
Belt speeding 0~13m/min Pressure <6kg/cm square
Voltage 220V Size 2200x650x1250mm
Weight 320kg Total power 4900W

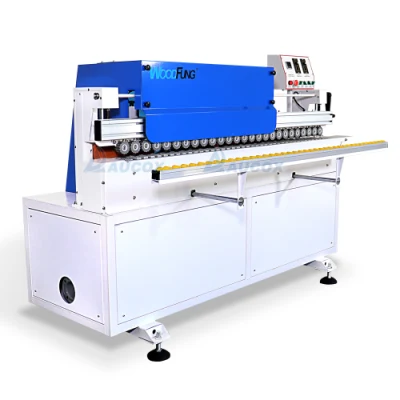

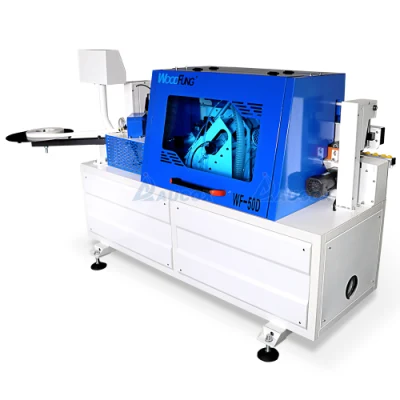

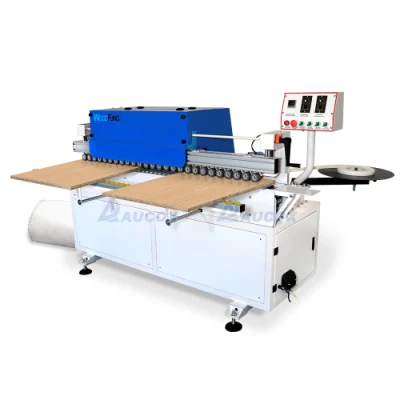

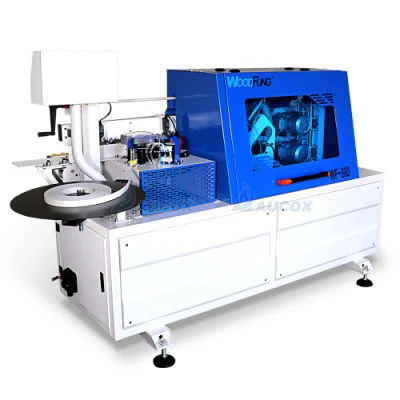

Detailed Images
Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine Woodworking Machinery Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine

FAQ:

Q1: What is the warranty for the machine?
For our wood machine, we have 18months warranty.

Q2:Can I choose the voltage?
Yes,we have 380V or 220V for choice for your country

Q3.What is your lead time after i pay?
Normally,we have stock for 380V,for the 220V customized,about 5days.

Q4:How long will i get the machine after i pay?
for small machine by air,about 7days,and for the big machine by sea.about 20~45days to your ports.

Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.

Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox has 10years export experience to all over the world,also has professional sales team,
we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.

Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe

Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
