Basic Info.
Model NO.
YC-1625L
Power Source
Electric
Layout
Other
Transport Package
Wooden Case
Specification
2200*3300mm
Trademark
YUCHEN
Origin
Jinan Shandong
Production Capacity
1 Case/Cases
Product Description

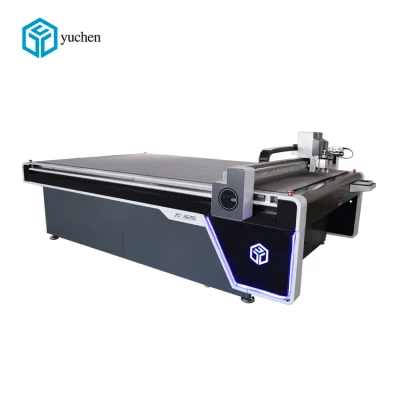

Yuchen Digital cutter for Rubber mat cutting machine
Model: YC-1625L Machine size can be customized
Brand: Yuchen
Applicable cutting materials: PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, etc
Functions: cutting,
Standard Equipments: Oscillating Knife Cutting tool.
FEATURE:
| Model | YC-1625L | YC-1630L | YC-1625A |
| Working area | 2500×1600mm | 3000×1600mm | 2500×1600mm |
| Operation properties | continuous cutting with high efficiency, 7*24 with zero downtime | ||
| Safety device | Infrared sensor; sensitive response; safe and reliable | ||
| Maxi cutting speed | 1200mm/s | ||
| Translational velocity | 1500mm/s | ||
| Applicable materials | PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, etc | ||
| Multifunctional head | Oscillating cutting tool | ||
| Cutting thickness | 0.1-20mm (subject to material) 0.1-10.0mm (subject to the material cutting) | ||
| Cutting tolerance | ±0.1mm | ||
| Transmission interface | Ethernet | ||

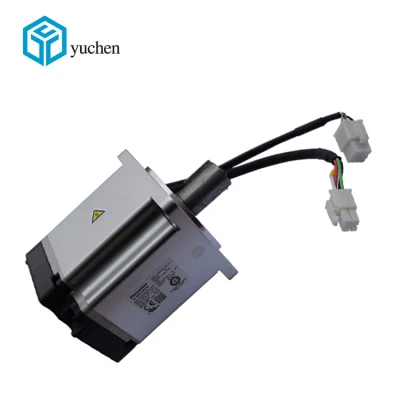

| Driven system | Motor: Fuji Linear rail: Hiwin | ||
| Fixed mode | Vacuum absorb | ||
| Supply voltage | 220V 380V±10%,50HZ AC 220V 380V±10%,50HZ | ||
| Rated power | 11KW | ||
